With an optimized swirl insert, Lechler’s comprehensive range of Axial-flow Full Cone nozzles produce exceptionally uniform liquid distribution across the entire “circular” footprint.

Liquid distribution, spray angles and droplet sizes remain very consistent. Optimized swirl inserts offer larger free passages or cross-sections within the nozzle, this assists in extended maintenance free periods.
The Helix Spiral nozzle also referred to as pigtail nozzle. These nozzles offer wide flow openings and no internal parts, for a particularly clog free operation.

Optimized swirl inserts. Extremely uniform liquid distribution. Extensive flow rate range with a wide variety of spray angle options

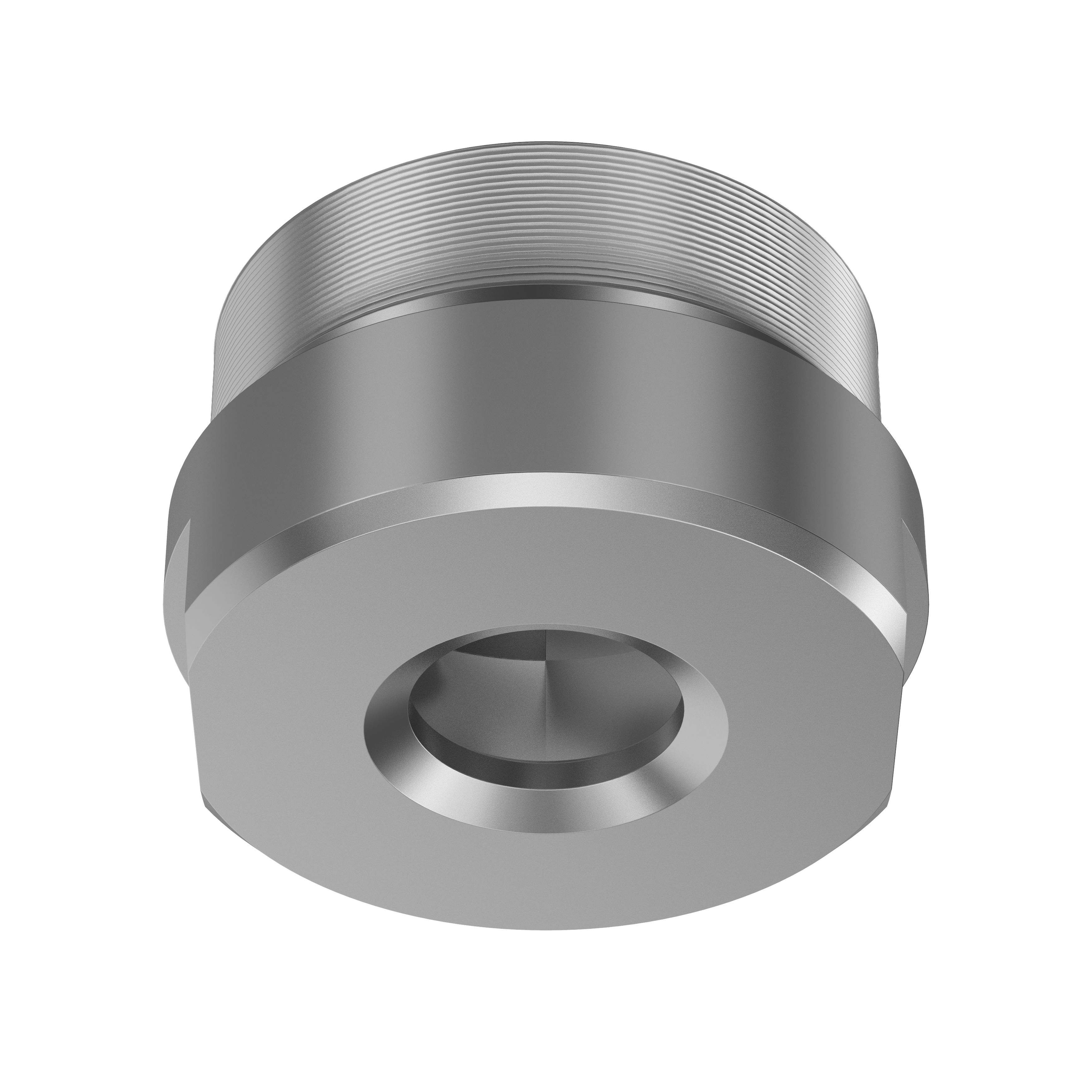

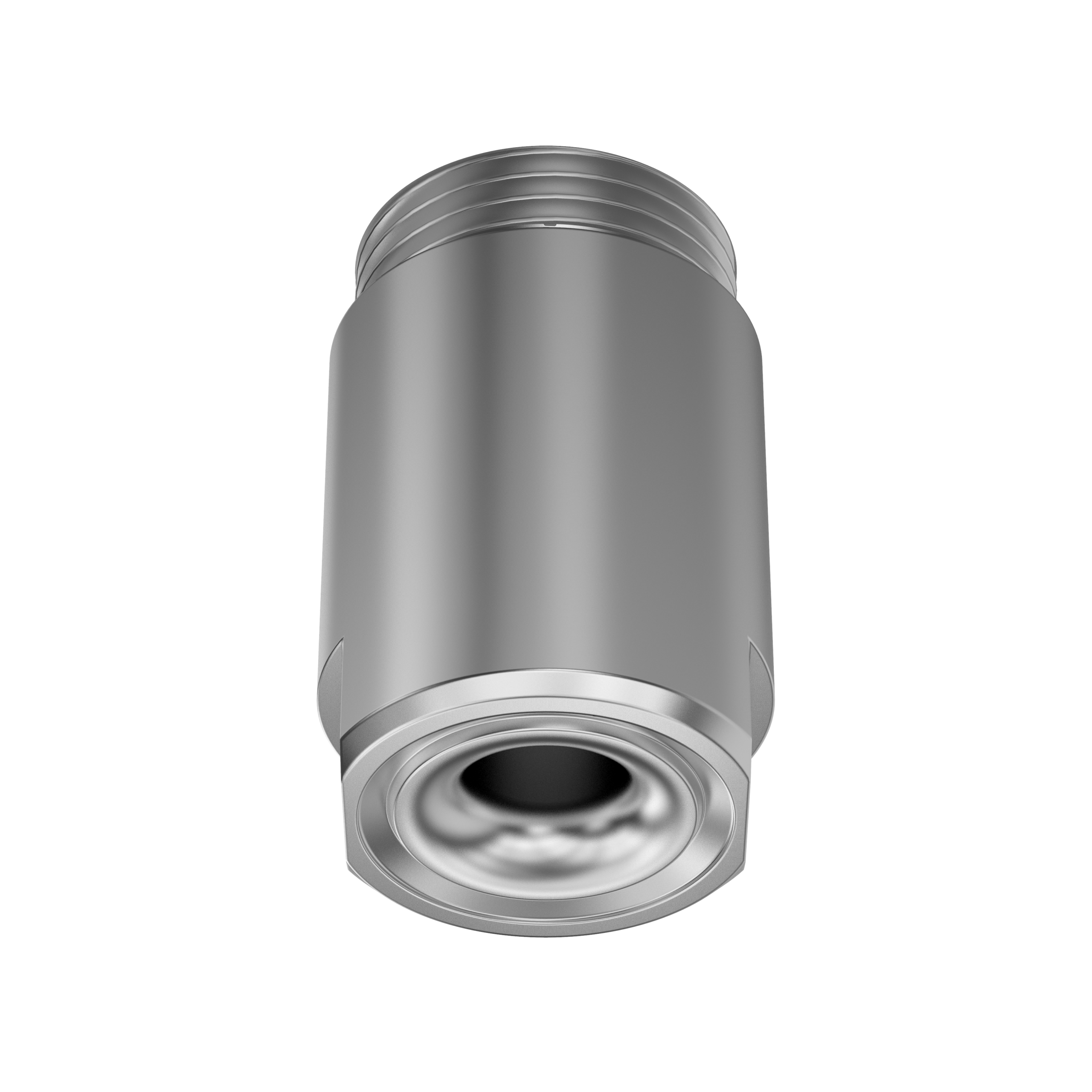

Series: 403

Large capacity full cone nozzles with optimized x-vane swirl insert, for large free cross-sections.

Applications: Surface spraying, spraying over packing, cleaning and washing, chemical process engineering, cooling of gaseous fluids and solids, water treatment.

Series 403.pdf

Technical specifications can change without notice.
