With an optimized swirl insert, Lechler’s comprehensive range of Axial-flow Full Cone nozzles produce exceptionally uniform liquid distribution across the entire “circular” footprint.

Liquid distribution, spray angles and droplet sizes remain very consistent. Optimized swirl inserts offer larger free passages or cross-sections within the nozzle, this assists in extended maintenance free periods.
The Helix Spiral nozzle also referred to as pigtail nozzle. These nozzles offer wide flow openings and no internal parts, for a particularly clog free operation.

Optimized swirl inserts. Extremely uniform liquid distribution. Extensive flow rate range with a wide variety of spray angle options

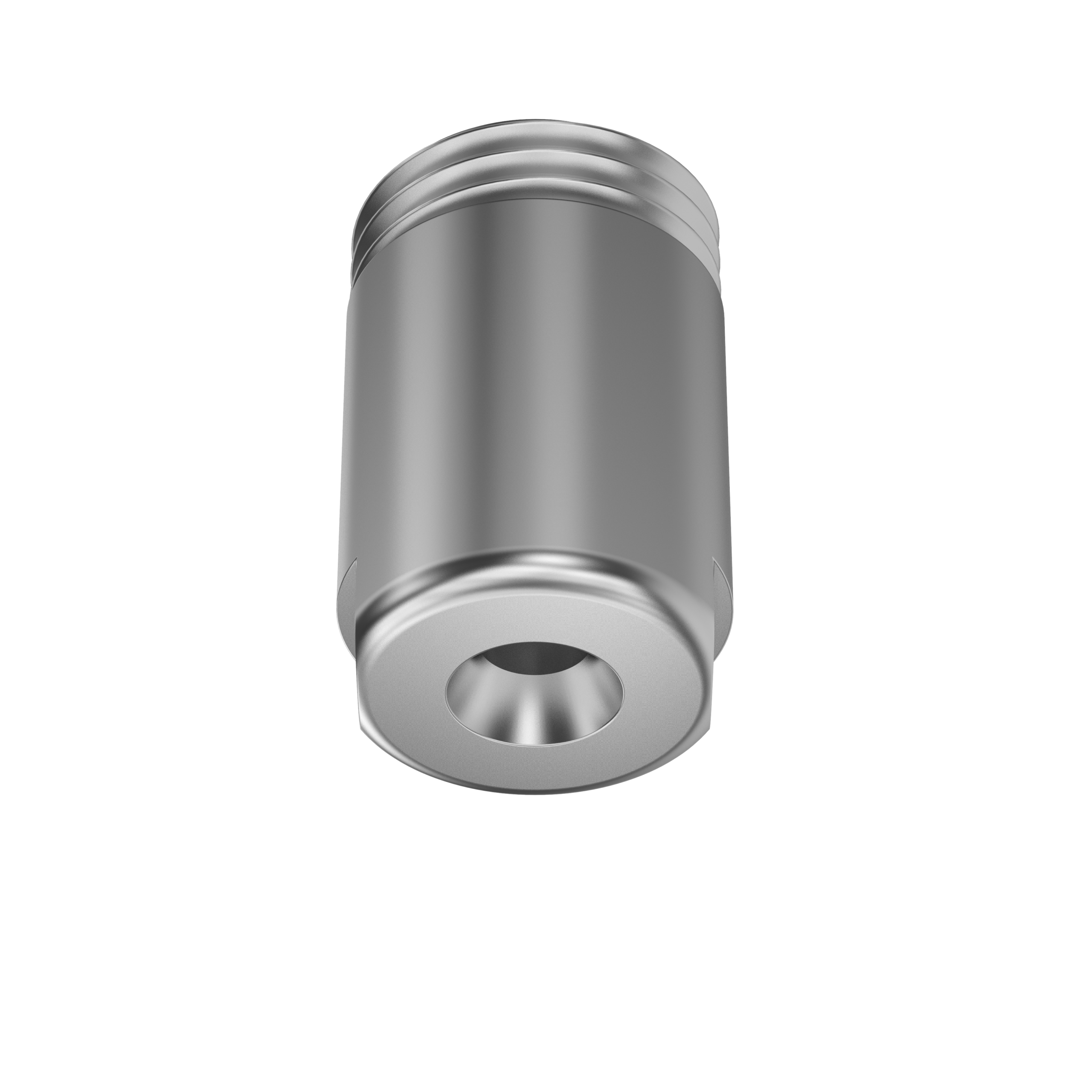

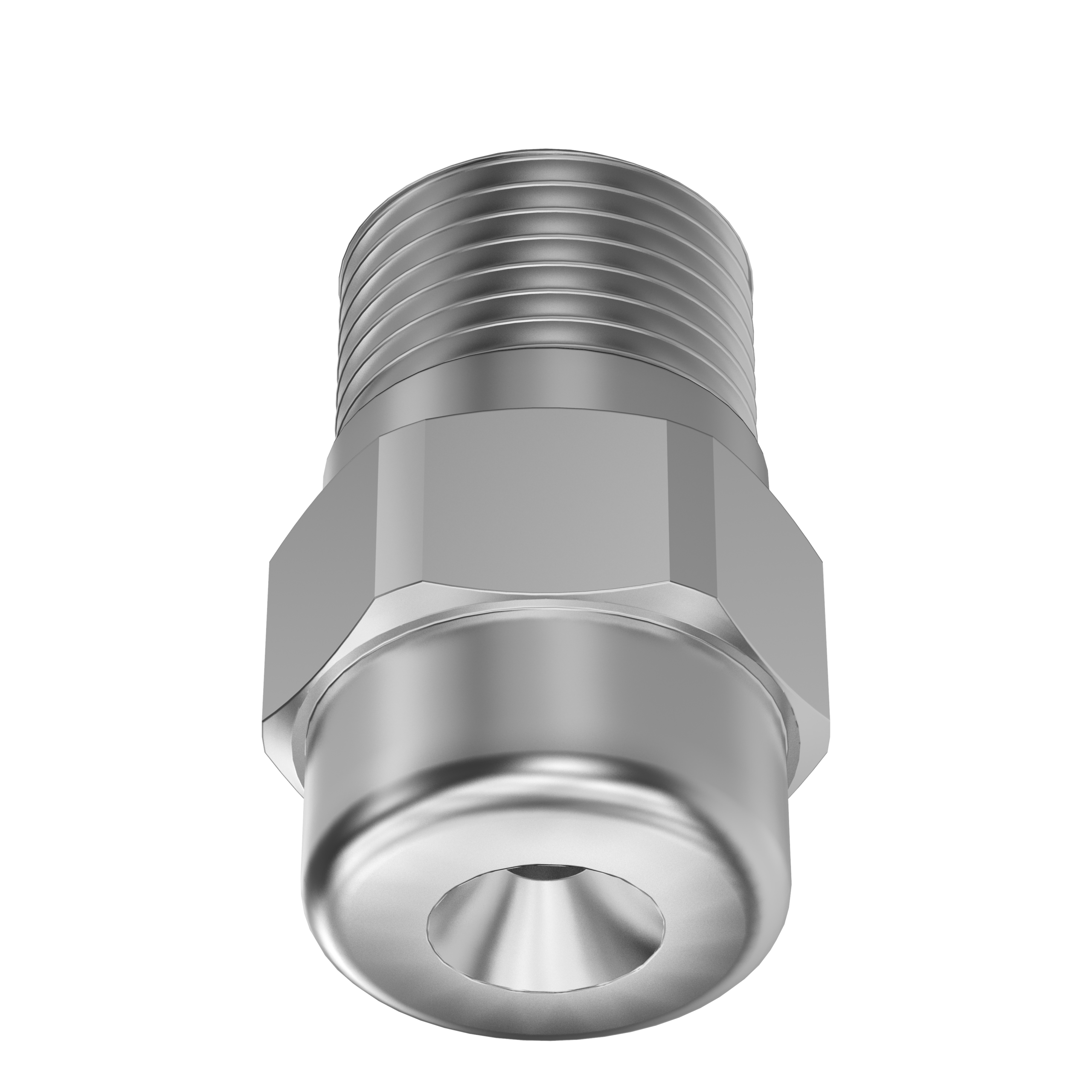

Series: 490 / 491

NEW design Full Cone Nozzle with up to 30-40% larger free passage to conventional axial-flow full cone nozzles resulting in an increased service life. Extremely stable spray angles with excellent liquid distribution through-out a wide pressure range from 1 to 20+Bar.

Non-Clogging nozzle design. Stable spray angle / pattern. Even liquid distribution.

Series 490.pdf

Technical specifications can change without notice.
