Single-Fluid Nozzles

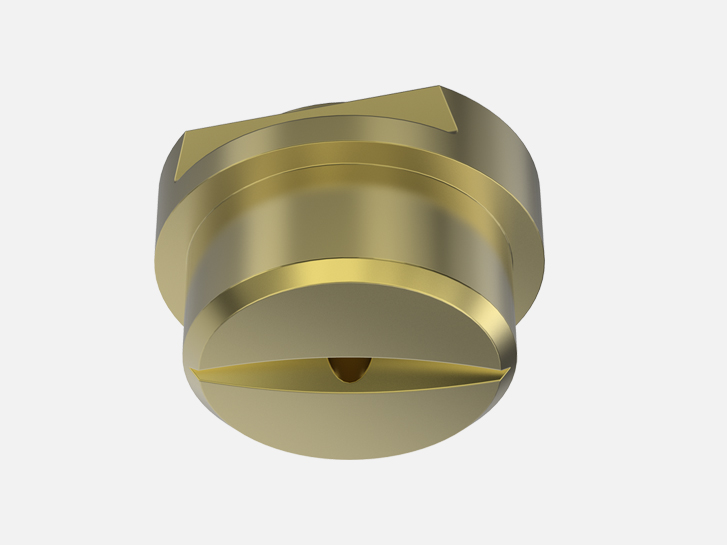

Series 664 Dove-tail flat fan.pdf
Applications:
• Multi and single arrangements in segments for water only secondary cooling
• Standard offset angle 15°
• 0° offset angle available on request 664.xxx.xx.90 or 665.xxx.xx.90

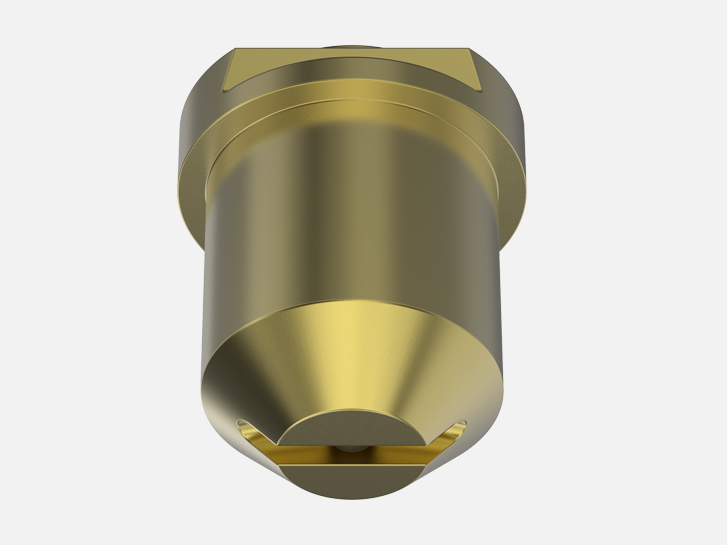

Series 600.280 Dove-tail full cone.pdf
Applications:
• Single and multi arrangements in segments for water only secondary cooling in bloom and slab casters
• Suitable for vertical positions such as narrow side cooling

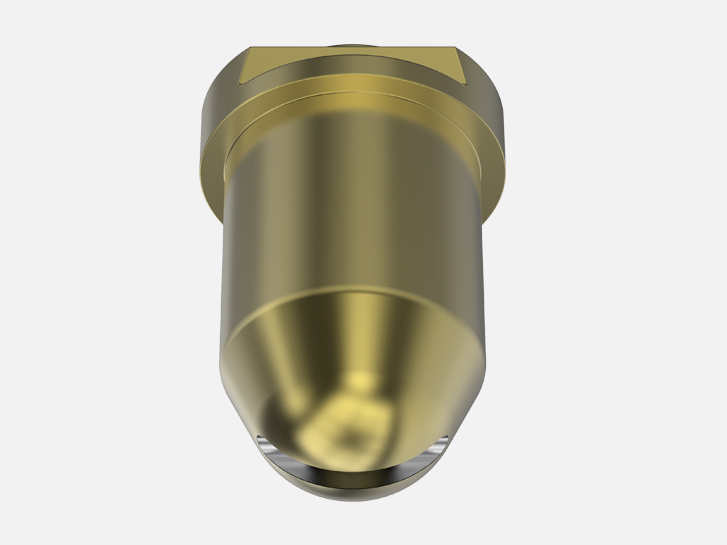

Series 366 High impact.pdf
Applications:
• Multi nozzle arrangements in segments for water only secondary cooling, especially in thin slab high speed casters

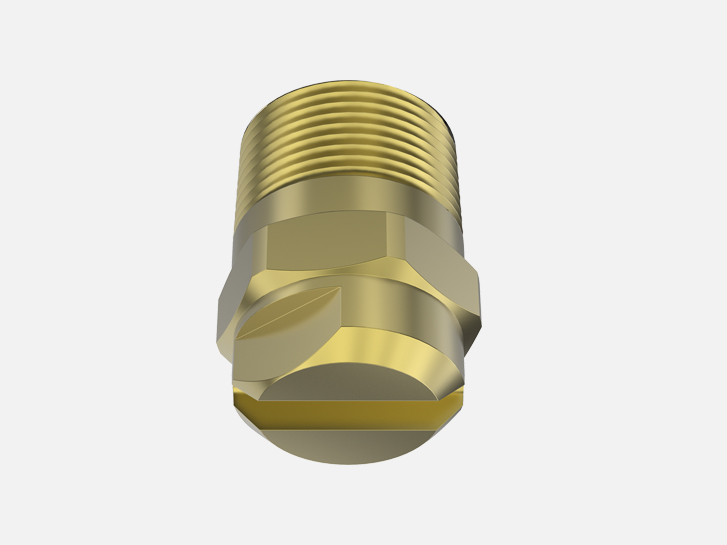

Series 4PM.291 Oval full cone.pdf
Applications:
• Strand cooling in billet casters
• Strand narrow side cooling in slab casters
• Spray cooling of billet moulds
• Spray cooling of EAF electrodes after use

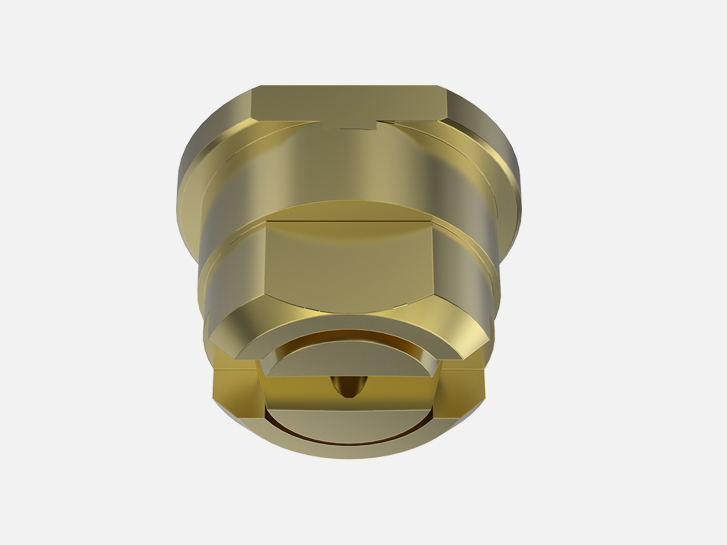

Series 6M2 Double-flat alignment.pdf
Applications:
• Multi nozzle arrangements for strand cooling in foot roller area of slab casters where space is limited
• Multi nozzle arrangements in segments for water only secondary cooling in stainless steel slab casters with low water flow rates

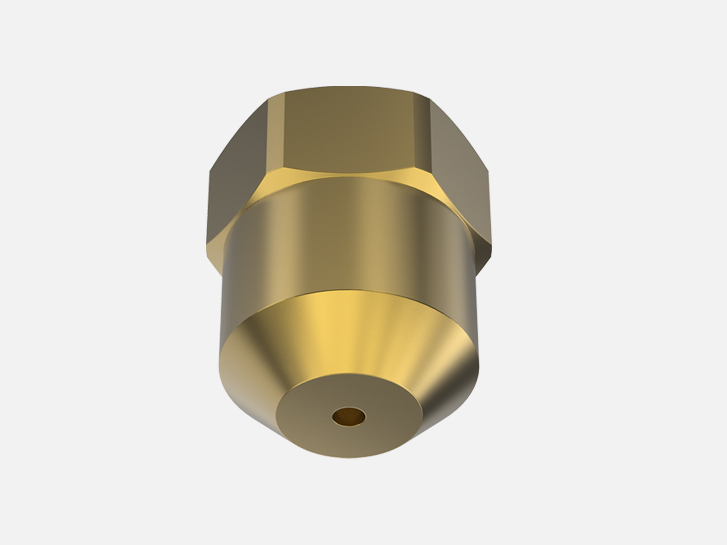

Series 486 Full cone female 3/8″.pdf
Applications:
• Commonly used in “Concast” billet casters

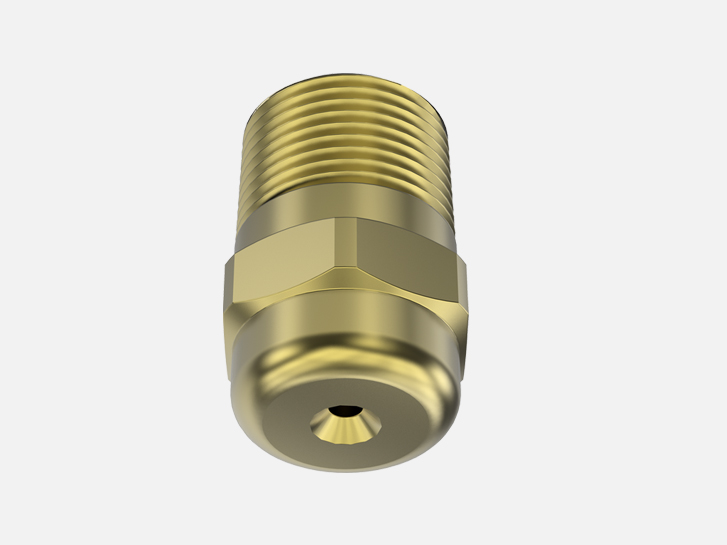

Series 490 Axial-flow full cone.pdf
Applications:
• Strand cooling in billet casters
• Strand narrow side cooling in slab casters
• Spray cooling in billet moulds
• Spray cooling of EAF electrodes after use

Series 660 Flat fan dove-tail.pdf
Applications:
• Multi nozzle arrangements for strand cooling in foot roller area of slab casters where space is limited
• Multi nozzle arrangements in segments for water only secondary cooling in stainless steel slab casters with low water flow rates
• Standard offset angle 5° built into the nozzle
• 0° offset angle available on request 660.xxx.xx.74
